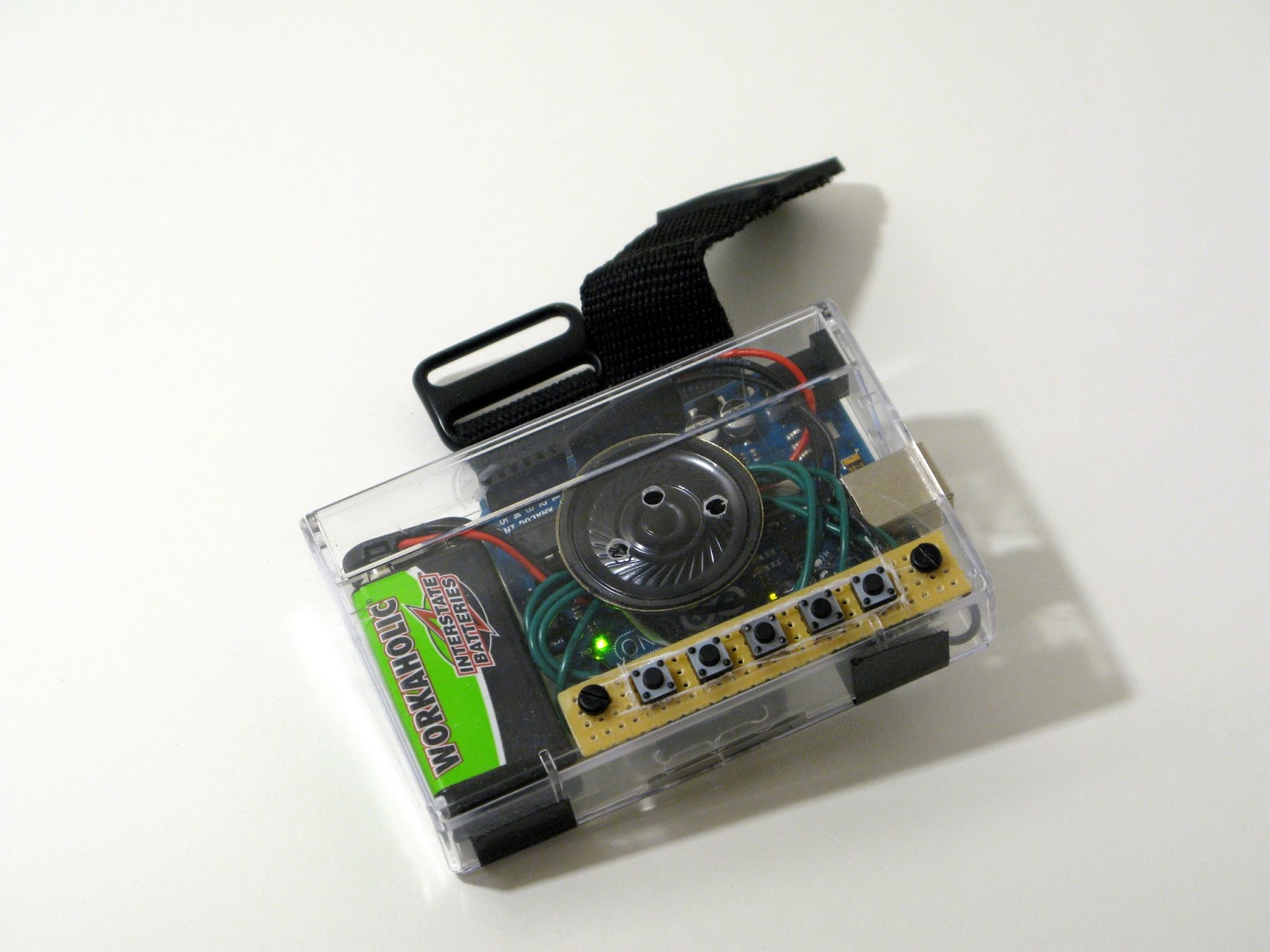

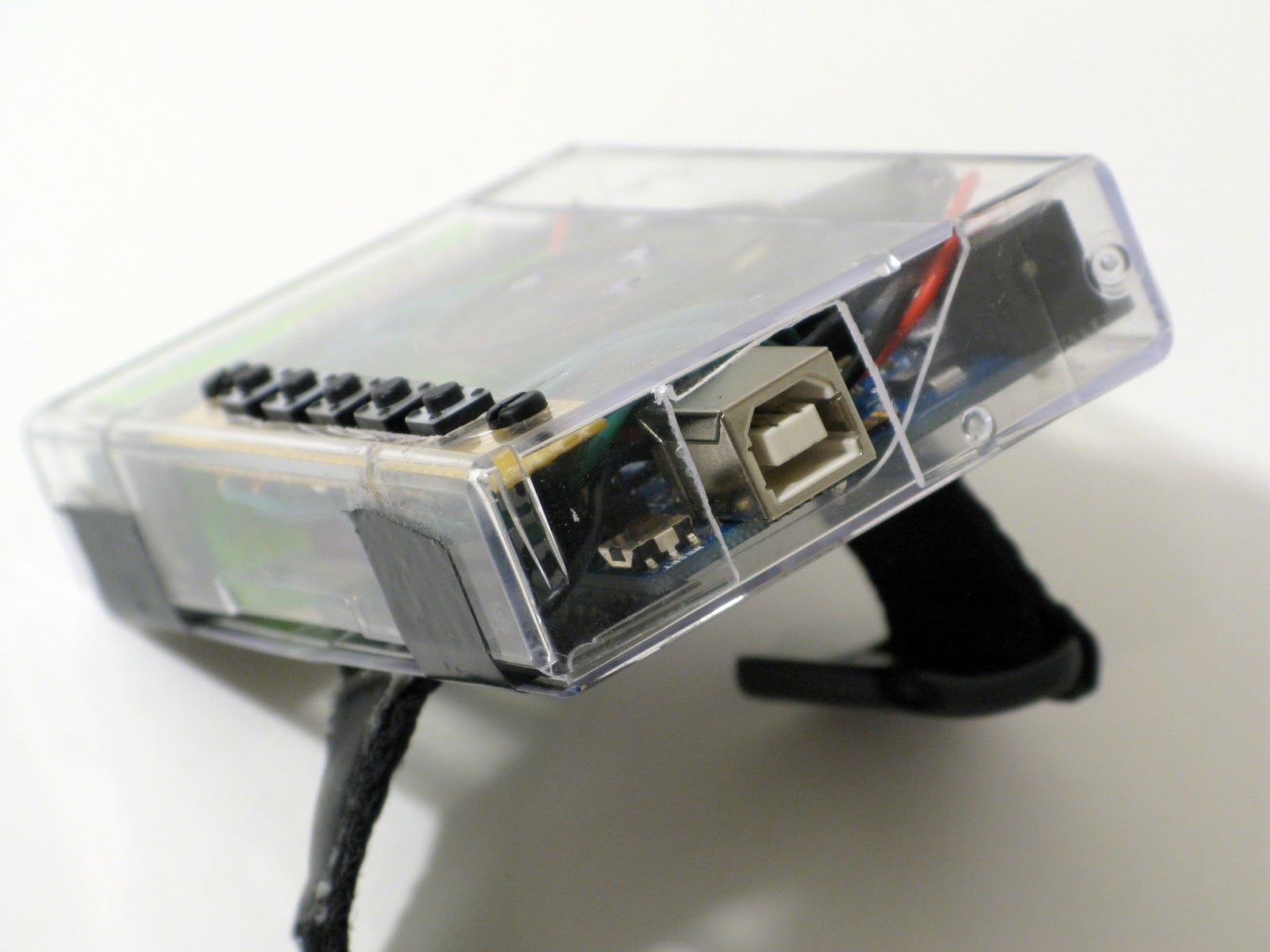

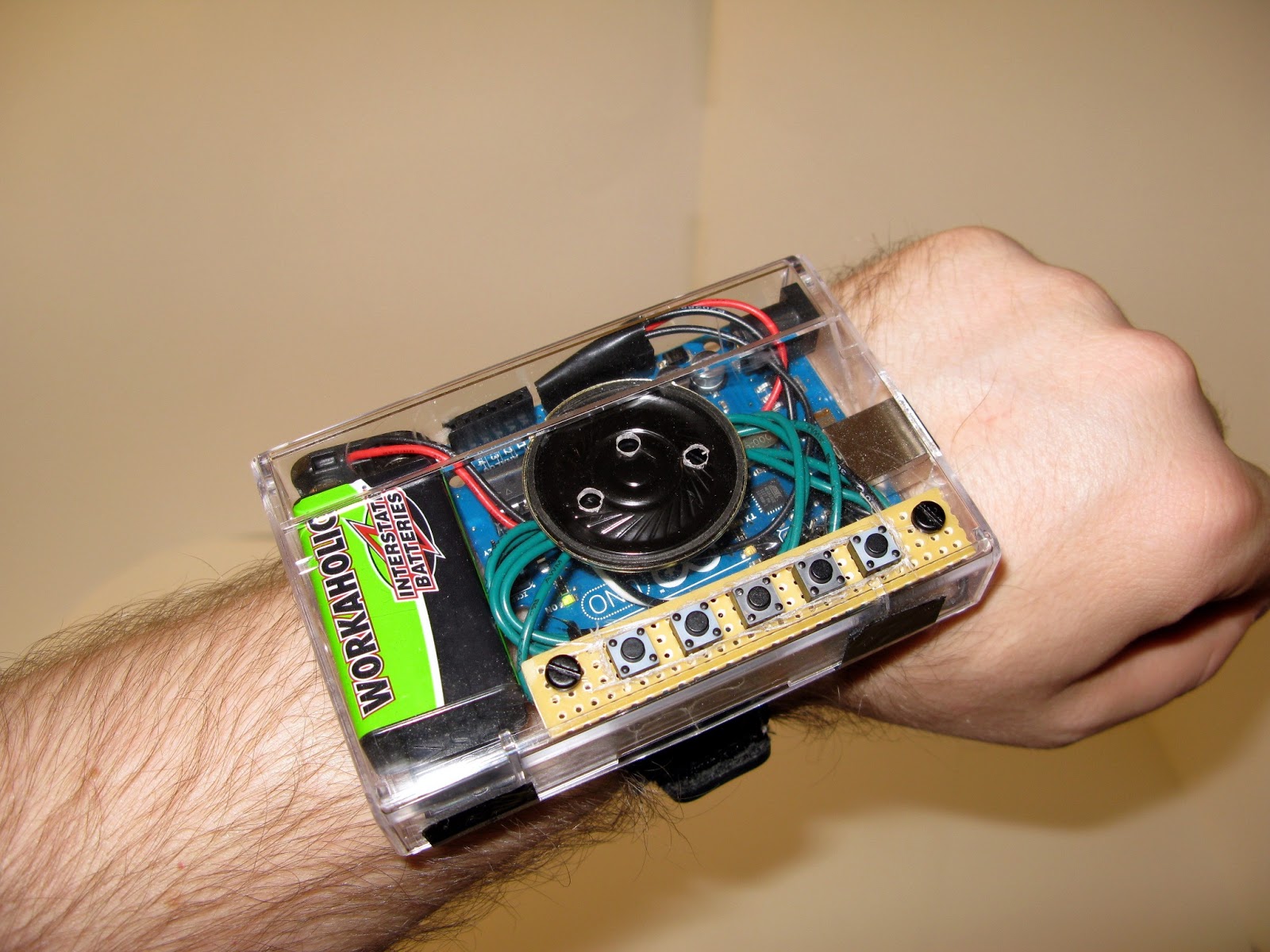

Wearable Arduino Tone Generator by Brian VonKaenel
[Arduino CDEFG Note Coding]
int piezoPin = 10 ;
/* declare the pin which the piezo speaker is attached to */
int keyOne = 2;
/* declare the first soft button */
int keyTwo = 3;
/* declare the second soft button */
int keyThree = 4;
/* declare the third soft button */
int keyFour = 5;
/* declare the fourth soft button */
int keyFive = 6;
/* declare the fifth soft button */
void setup(){
pinMode(piezoPin,OUTPUT);
/* declare the piezopin as output */
pinMode(keyOne,INPUT);
/* declare the first soft button as input */
pinMode(keyTwo,INPUT);
/* declare the second soft button as input */
pinMode(keyThree,INPUT);
/* declare the third soft button as input */
pinMode(keyFour,INPUT);
/* declare the fourth soft button as input */
pinMode(keyFive,INPUT);
/* declare the fifth soft button as input */
digitalWrite(keyOne,HIGH);
/* send 5V to the first soft button */
digitalWrite(keyTwo,HIGH);
/* send 5V to the second soft button */
digitalWrite(keyThree,HIGH);
/* send 5V to the third soft button */
digitalWrite(keyFour,HIGH);
/* send 5V to the fourth soft button */
digitalWrite(keyFive,HIGH);
/* send 5V to the fifth soft button */
}
void loop(){
if(digitalRead(keyOne) == LOW){
/* tests if the first soft button is pushed */
digitalWrite(piezoPin,HIGH);
/* sends 5V to the piezo speaker */
delayMicroseconds(1911);
/* waits for 1911 microseconds (creates a C) */
digitalWrite(piezoPin,LOW);
/* stops sending 5V to the piezo speaker */
delayMicroseconds(1911);
/* waits for another 1911 microseconds */
}
if(digitalRead(keyTwo) == LOW){
/* tests if the second soft button is pushed */
digitalWrite(piezoPin,HIGH);
/* sends 5V to the piezo speaker */
delayMicroseconds(1703);
/* waits for 1703 microseconds (creates a D) */
digitalWrite(piezoPin,LOW);
/* stops sending 5V to the piezo speaker */
delayMicroseconds(1703);
/* waits for another 1703 microseconds */
}
if(digitalRead(keyThree) == LOW){
/* tests if the third soft button is pushed */
digitalWrite(piezoPin,HIGH);
/* sends 5V to the piezo speaker */
delayMicroseconds(1517);
/* waits for 1517 microseconds (creates an E) */
digitalWrite(piezoPin,LOW);
/* stops sending 5V to the piezo speaker */
delayMicroseconds(1517);
/* waits for another 1517 microseconds */
}
if(digitalRead (keyFour) == LOW){
/* tests if the fourth soft button is pushed */
digitalWrite(piezoPin,HIGH);
/* sends 5V to the piezo speaker */
delayMicroseconds(1432);
/* waits for 1432 microseconds (creates an F) */
digitalWrite(piezoPin,LOW);
/* stops sending 5V to the piezo speaker */
delayMicroseconds(1432);
/* waits for another 1432 microseconds */
}
if (digitalRead(keyFive) == LOW){
/* tests if the fifth soft button is pushed */
digitalWrite(piezoPin,HIGH);
/* sends 5V to the piezo speaker */
delayMicroseconds(1276);
/* waits for 1276 microseconds (creates a G) */
digitalWrite(piezoPin,LOW);
/* stops sending 5V to the piezo speaker */
delayMicroseconds(1276);
/* waits for another 1276 microseconds */
}
}
