misery animal child’s game

Posted by Sabrina on

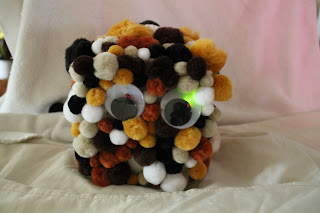

the game is played by having the child guess what animal the misery animal
is and then having then pass by the animal and activating a random animal sound. if the child guesses wrong they go to the back of the line. if they guess right then they win the game. there is also a party sound and if triggered the kids all dance.
I tried work with a music shield but after countless attempts i could not get it to work
so here only have been able to program the arduino with a ultrasonic module HC-SR04 distance sensor to demonstrate something like what i was attempting.

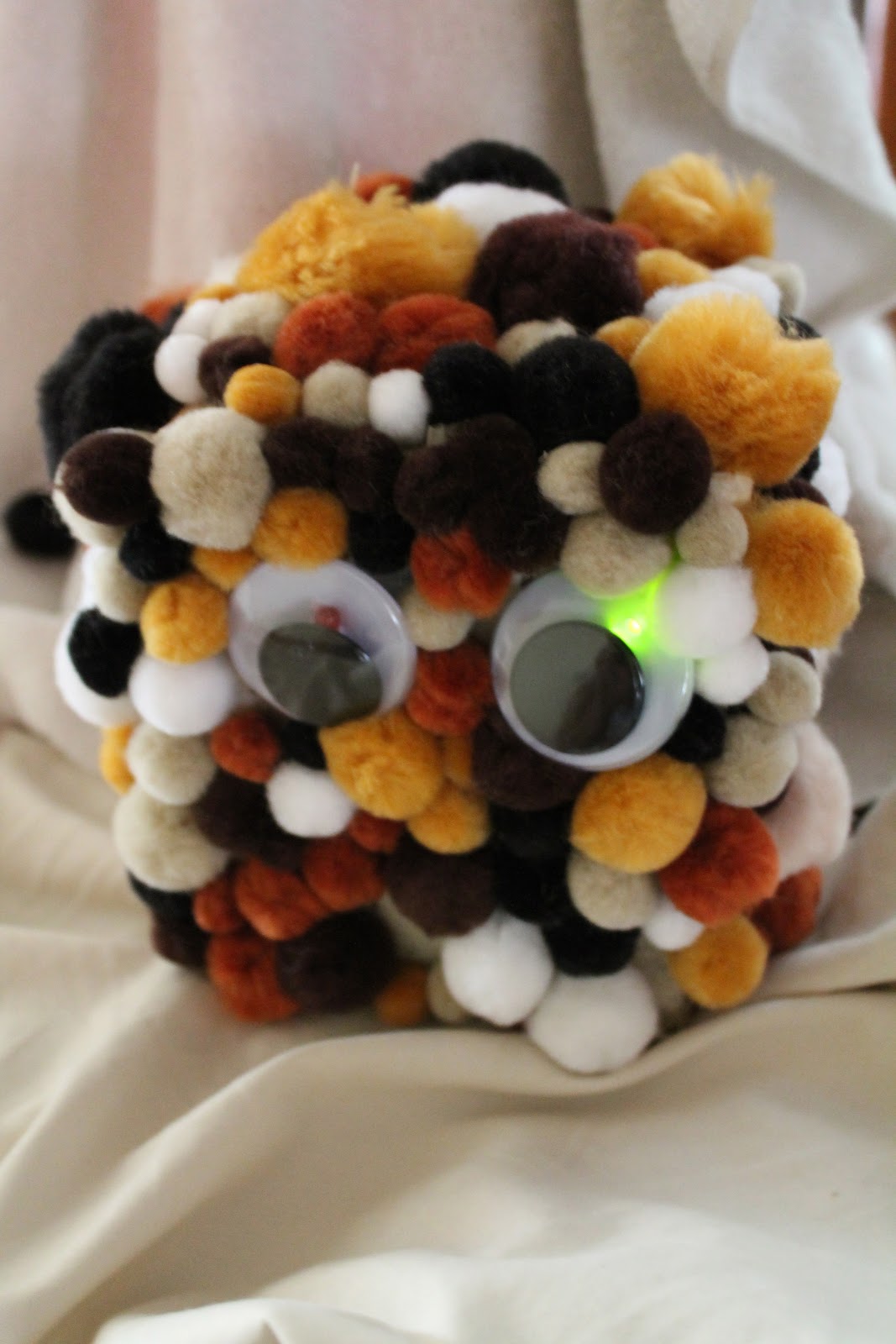

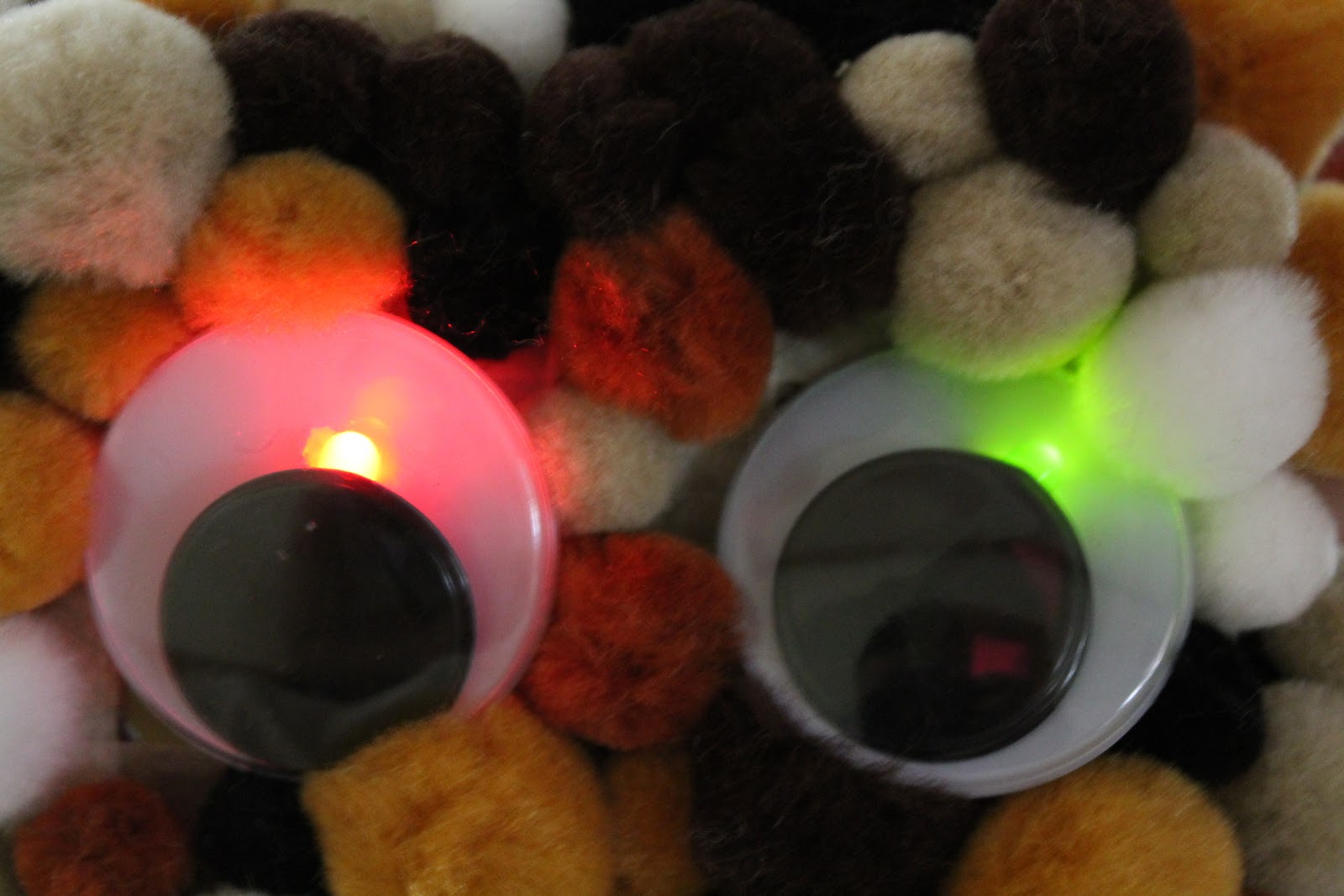

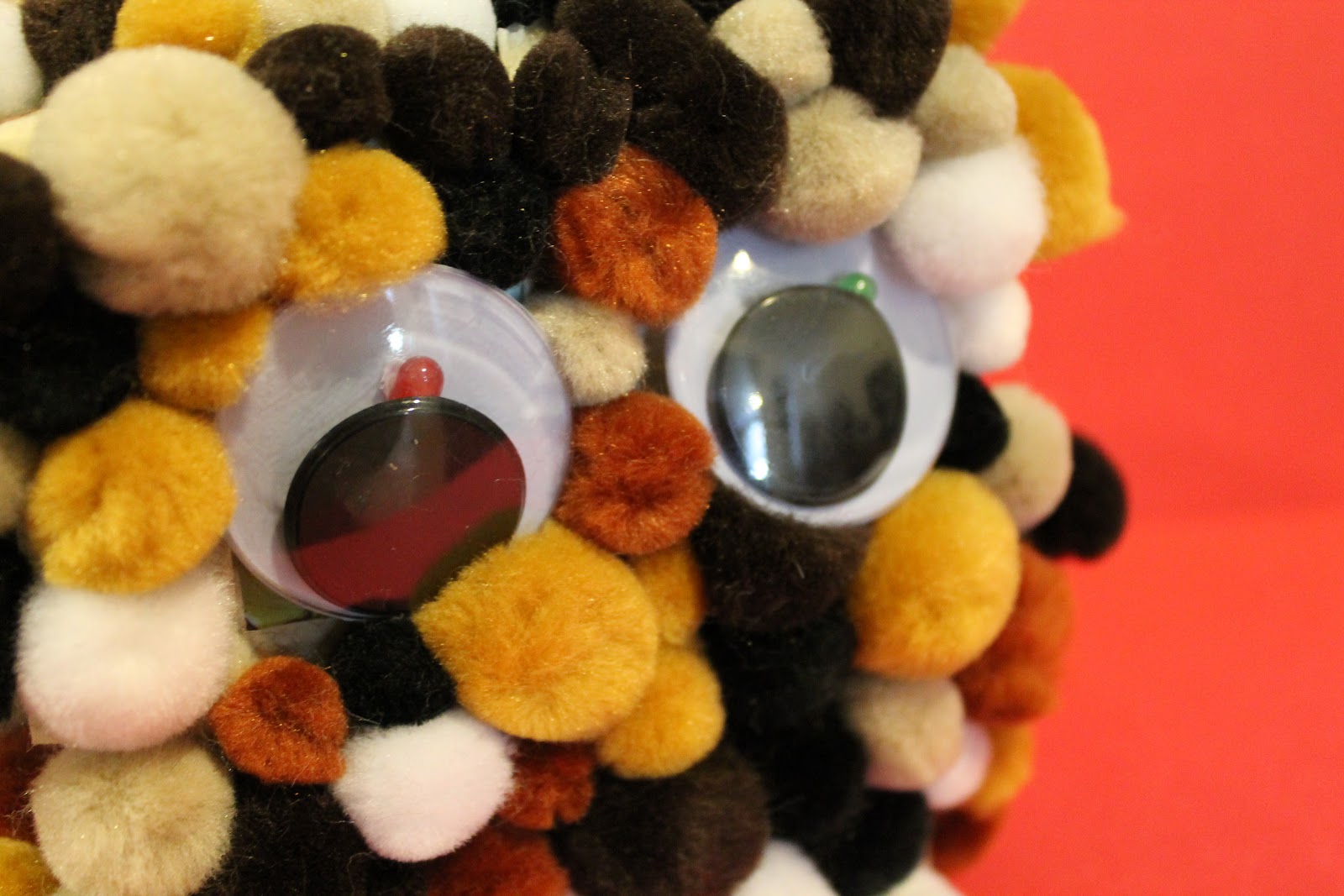

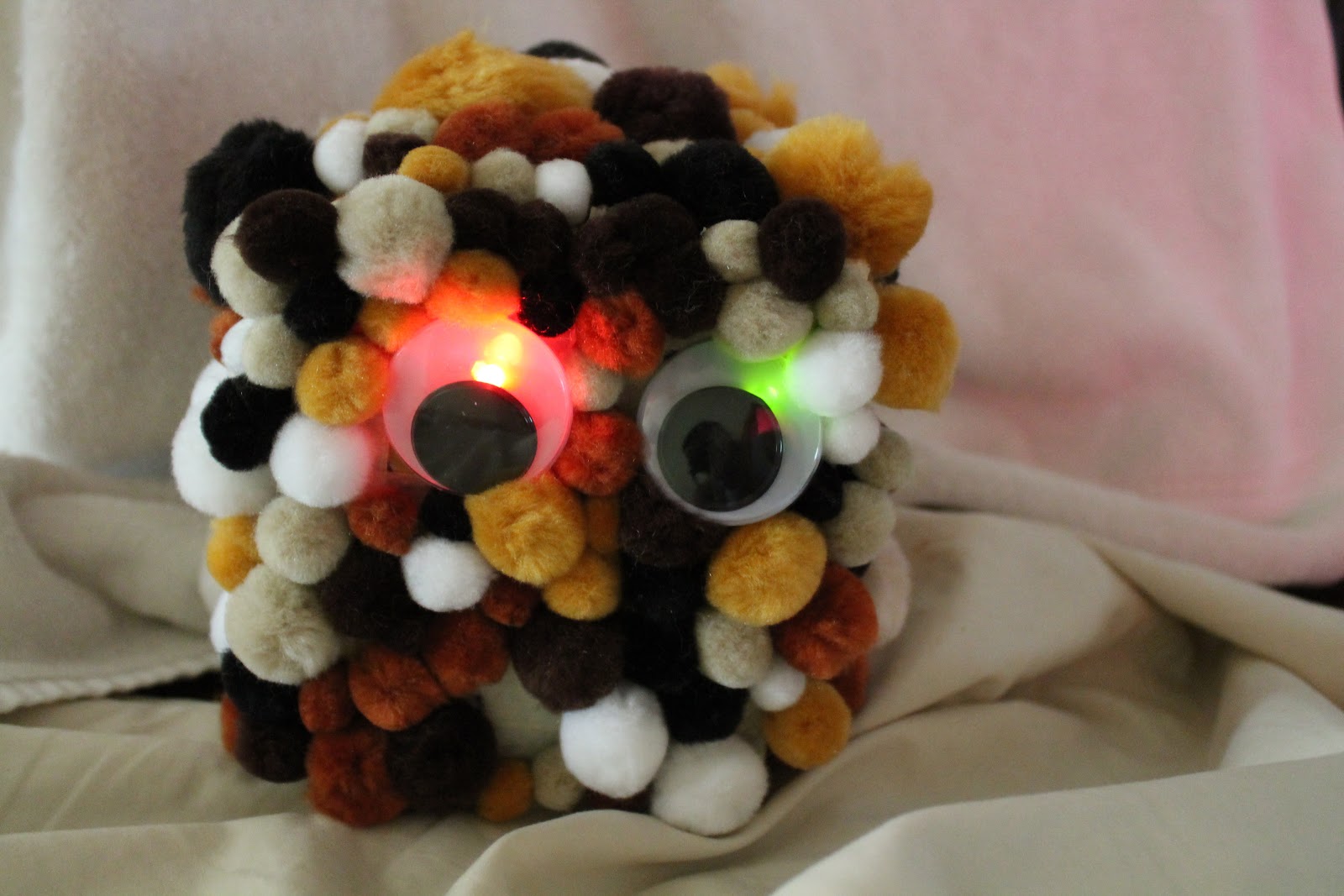

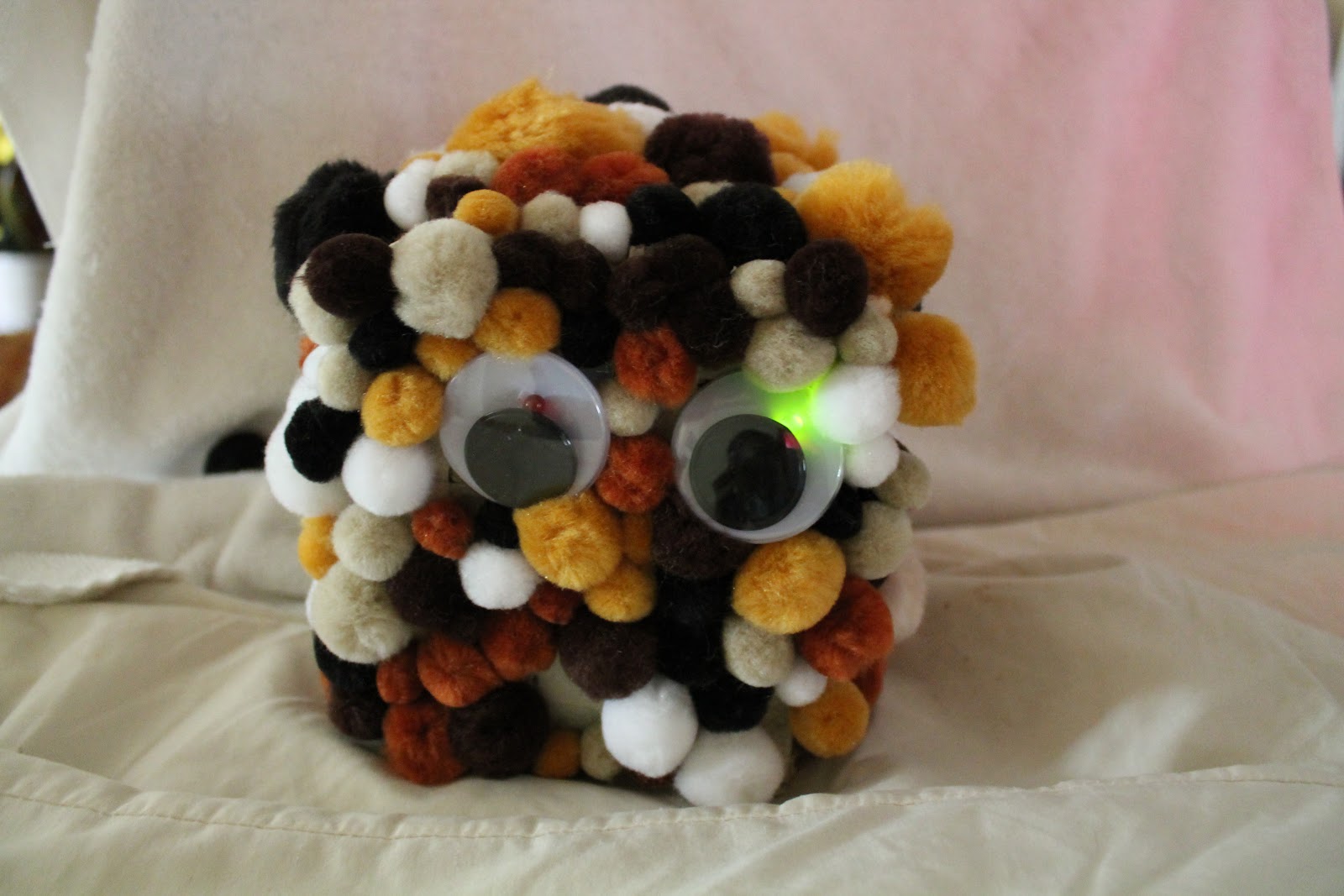

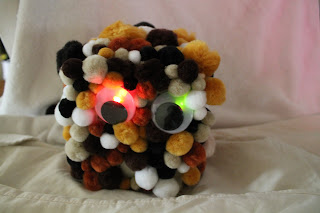

                           when the red light goes off it means the distance sensor has been tripped.

i had a little trouble with the cooperation of my little brother because the camera was on lol be he likes the game.

/*
HC-SR04 Ping distance sensor]

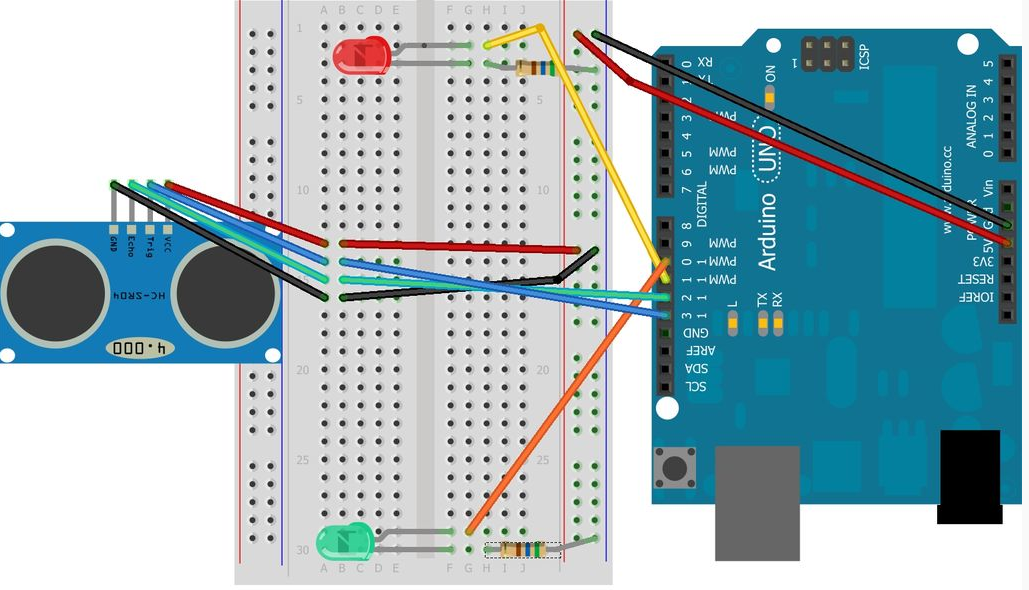

VCC to arduino 5v GND to arduino GND
Echo to Arduino pin 13 Trig to Arduino pin 12
Red POS to Arduino pin 11
Green POS to Arduino pin 10
560 ohm resistor to both LED NEG and GRD power rail
More info at: http://goo.gl/kJ8Gl
Original code improvements to the Ping sketch sourced from Trollmaker.com
Some code and wiring inspired by http://en.wikiversity.org/wiki/User:Dstaub/robotcar
*/

#define trigPin 13
#define echoPin 12
#define led 11
#define led2 10

void setup() {
  Serial.begin (9600);
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);
  pinMode(led, OUTPUT);
  pinMode(led2, OUTPUT);
}

void loop() {
  long duration, distance;
  digitalWrite(trigPin, LOW);  // Added this line
  delayMicroseconds(2); // Added this line
  digitalWrite(trigPin, HIGH);
//  delayMicroseconds(1000); – Removed this line
  delayMicroseconds(10); // Added this line
  digitalWrite(trigPin, LOW);
  duration = pulseIn(echoPin, HIGH);
  distance = (duration/2) / 29.1;
  if (distance < 4) {  // This is where the LED On/Off happens
    digitalWrite(led,HIGH); // When the Red condition is met, the Green LED should turn off
  digitalWrite(led2,LOW);
}
  else {
    digitalWrite(led,LOW);
    digitalWrite(led2,HIGH);
  }
  if (distance >= 200 || distance <= 0){
    Serial.println(“Out of range”);
  }
  else {
    Serial.print(distance);
    Serial.println(” cm”);
  }
  delay(500);
}
