Final Project Documentation & Code

on

Here is the video of my final documentation. I am sorry it is a little longer over the maximum time.

https://www.dropbox.com/s/w5xj2nrwgz6kp19/Final%20Documentation%20Video%20.mov?dl=0


Here is the code I used:

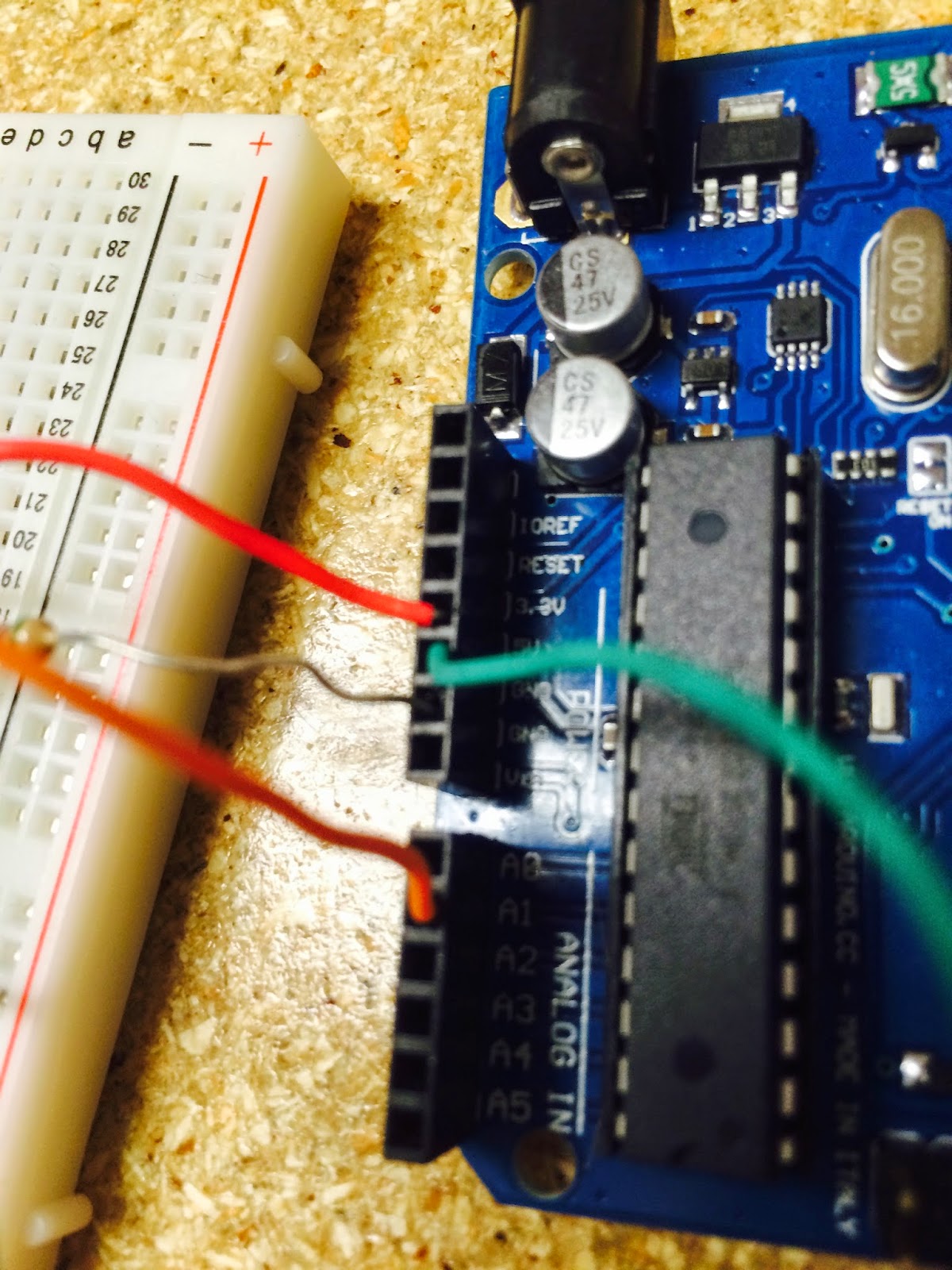

int sensorPin = A1;    // select the input pin for the electret mic
int ledPin = 5;    // LED connected to digital pin 5
int ledPin2 = 6;    // LED connected to digital pin 6
int volume = 0;  // variable to store the volume level value coming from the sensor
int volume2 = 0;  // variable to store the volume level value coming from the sensor – mapped to a range of 0-255
int delayTime = 20;

void setup(){
   Serial.begin(9600);
  pinMode(7, OUTPUT);
  pinMode(4, OUTPUT);
 //   pinMode(6, OUTPUT);
 // for(int i = 4; i<8; i++) // all off
digitalWrite(4, HIGH);
digitalWrite(7, HIGH);
//digitalWrite(6, HIGH);
}
 //

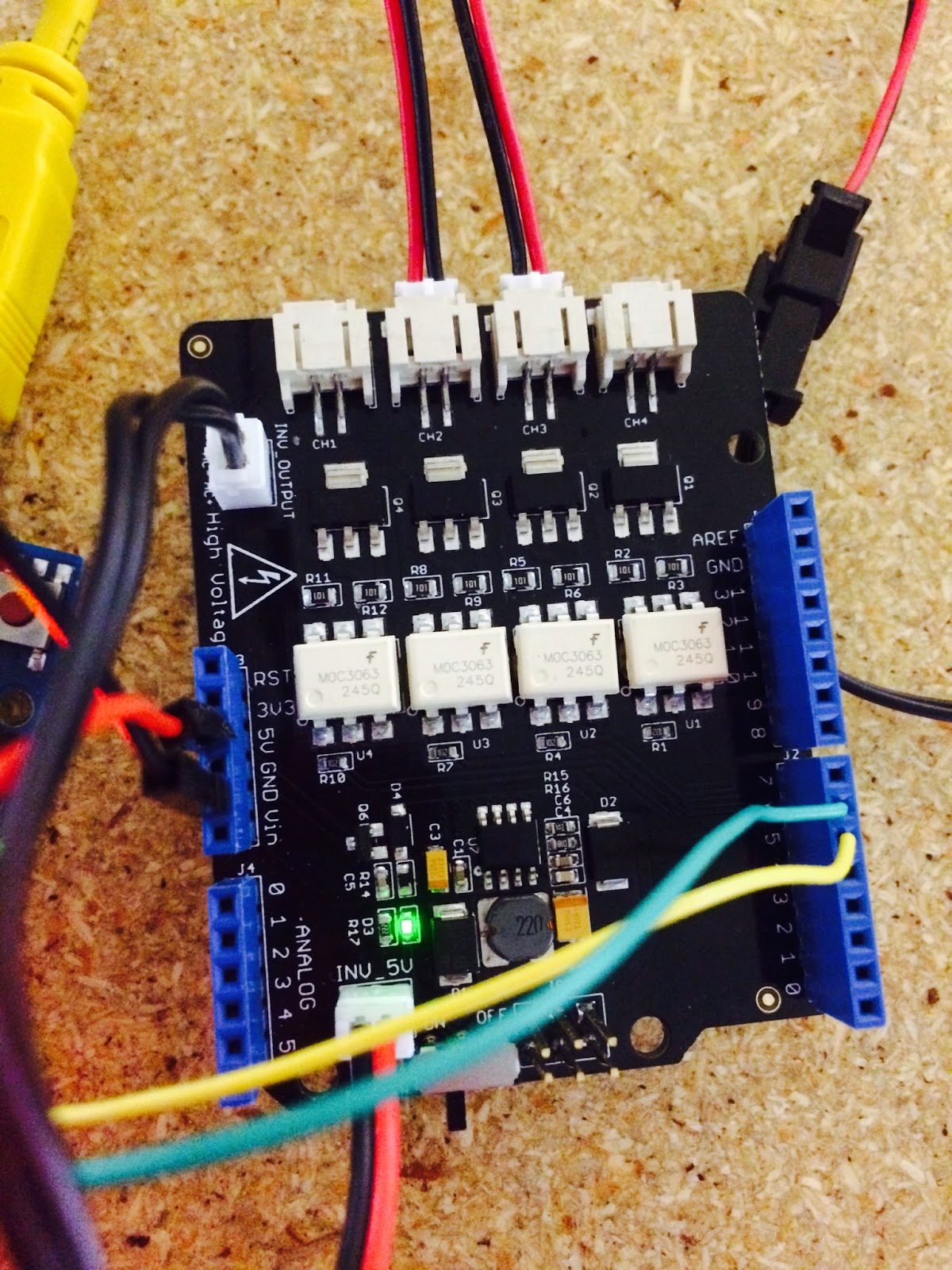

//void setEL(int ch) // set a certain EL on
//{
// for(int i = 4; i<8; i++) // all off
// digitalWrite(i, LOW);
// digitalWrite(ch+3, HIGH); // ch on

//  for(int i = 4; i<8; i++) // all off
// digitalWrite(i, HIGH);
//}
//
//int count = 0;
 //}

void loop(){
 volume = analogRead(sensorPin);
 //  volume= abs(volume-450);  // look at the base value when room is quiet and subtract by that amount – it may not be 760
 if (volume < 1000) {
   volume = 1000;
 }
////
   volume2 = map(volume, 1000, 1023, 95, 255); // if you need to subtract 760 (as suggested above), change the initial range to 0, 263 instead of 0, 1023
// below 80 shows more flicker

   analogWrite(ledPin, volume2);
 analogWrite(ledPin2, volume2);
   Serial.println(volume);
//   Serial.print(“t”); //prints a tab
//   Serial.print(“t”); //prints a tab
//   Serial.println(volume2);

//   delay(delayTime);
}

//setEL(count%4 + 1);
// delay(200);
// if(count++ == 1000)
// {
//  count = 0;
 //}
